AS-630R

Set of 2 speakers (1 active + 1 passive) 2x30W

Set of 2 speakers (1 active + 1 passive) 2x30W

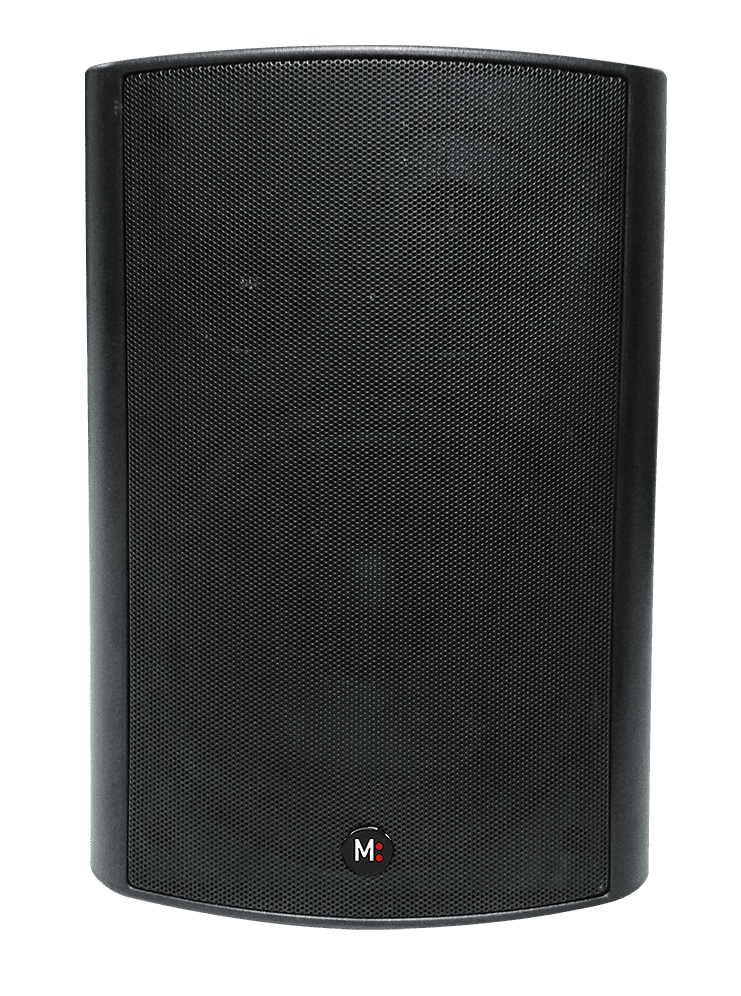

• The AS-630R speaker pair is composed of an active speaker and a passive speaker equipped with a 6 '' loudspeaker and a 1.5 '' tweeter.
• Integrated 2x30W amplification, two audio inputs for any type of audio link 0DB allowing for example to connect a video projector and / or a mixer.

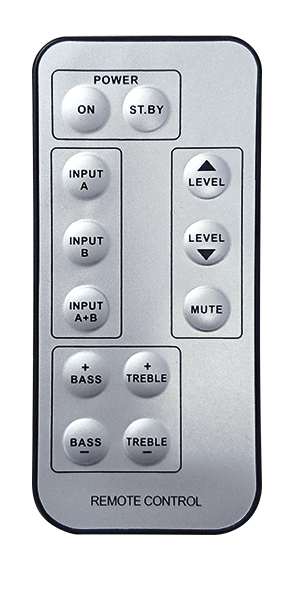

• Infrared remote control provided.
• This pair of speakers is perfectly adapted to the following applications: Course room, meeting room, projection room and in addition to a TV.

Downloads

FTC AS-630R EN

AS-630R_User Manual

Specifications

Power	2x30 W @ 8 Ω
Input sensibility	0.350 V
Frequency response	80Hz - 16kHz/1W, ±3dB
THD	1kHz/1W, 0.1%
S/N ratio	85dB
Channel Isolation	> 65dB
Amplifier	D class
Indicators	Power / Signal
Protection	Over temperature protection, overload protection, mute switch
Tonality control	Bass ±10dB, Treble ±10dB

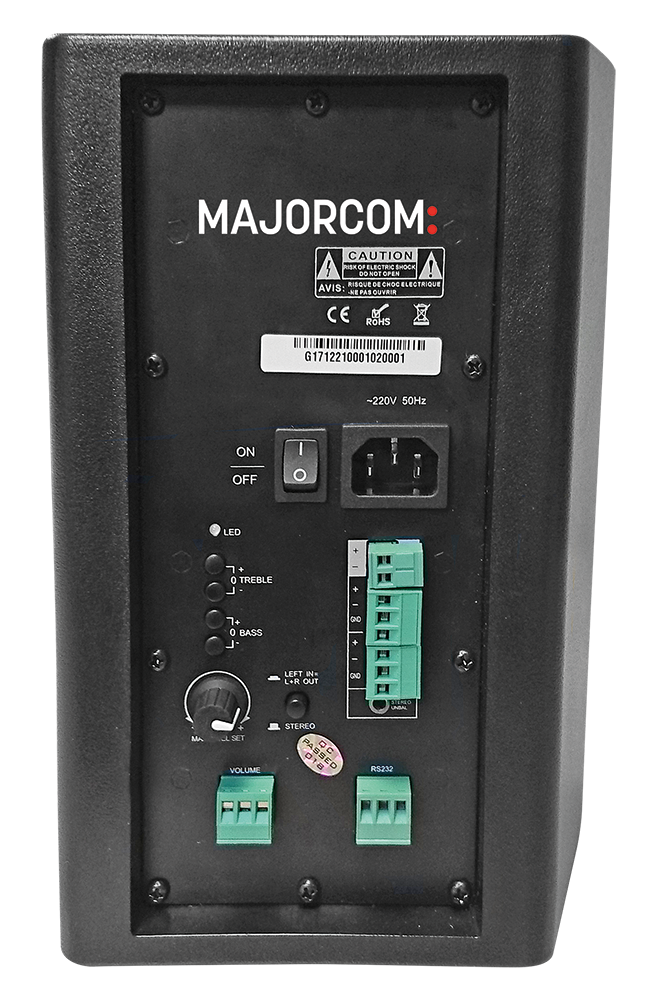

Input	Euroblock balance, stereo 3.5mm jack
RS-232	Euroblock RS232 Input
VCA	Euroblock VCA Input
Remote control	Infra-red Remote control
Dimensions (W x H x D)	216 × 295 × 245mm
Weight (Kg)	6.5kg (pair)
