Specifications
| Frequency range | 50-18,000 Hz |
|---|---|
| Power rating | 6 x 100 W |
| Dimensions (WxHxD) | 484 x 88 x 77 mm |
| Weight | 2kg |

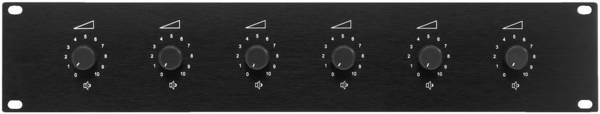

P ATT-19100
Panel 6 attenuators 100 W 19 “10 Bearings
6-way PA volume control for 482mm (19") rack mounting

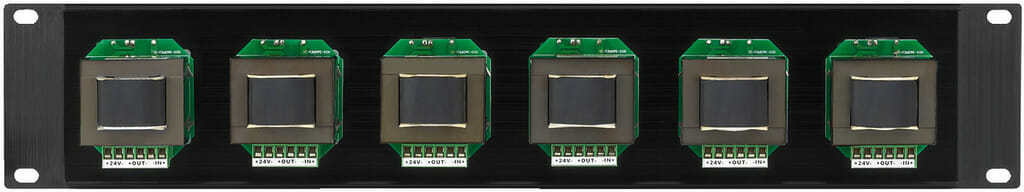

6 audio transformers for 100 V line
Connection for priority circuit, 6 priority relays ( DC 24 V/20 mA)
Attenuation in 10 steps, position 0 is OFF
Aluminium front panel
Available in 3 power classes
Plug-in screw terminal
