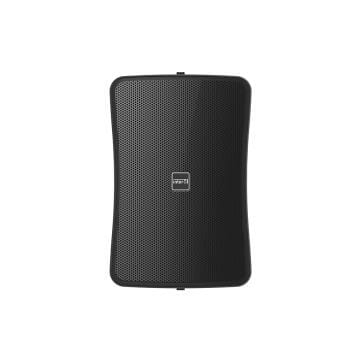

WS-30T/B

Speaker 3.8 / 7.5 / 15 / 30W 100V 8Ω – 4″ 2 Way

The WS range consists of elegant speaker suitable for the sound of places that require special care in terms of pure design and sound quality (bar, restaurant, reception room, conference room). This new range is optimized for the broadcast of atmosphere music and precise voice reproduction.
The WS range has 4 models from wideband WS-15T (2.5 '') to the 2-way WS-80T (6.5 '').
This range has been designed from broadband, low frequency and high frequency transducers, recently developed to produce a pure sound of high power and without distortion. In addition, 2-way models adopt an asymmetrical broadcast design to perfectly cover the audience area.

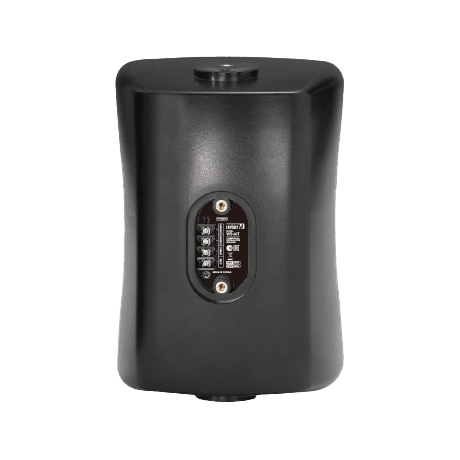

Thanks to the rear face selector, all 100V / 70V and 8 Ω powers can be adjusted.
They have an IP 54 protection index allowing their implementation as well indoors and outdoors.

Downloads

FT WS SERIE EN

WS-30T_CAD

Specifications

70V Transformer Taps	30/15/7.5/3.8/1.9W
100V Transformer Taps	30/15/7.5/3.8W
Connector	Screw terminal 2P
Dimensions (W x H x D) (mm)	139x210x129
Directivity	Horizontal: 120° (Near Field) , 60° (Far Field) Vertical: +20° to -40° (on axis)
Frequency range	100 Hz ~20 kHz
Material	ABS RESIN
Maximum SPL	106dB
Nominal Impedance	8 Ω
Power	30W (AES)
Protection rating	IP54
Sensitivity	85
Type	4” 2 way passive
Weight (Kg)	1.72
